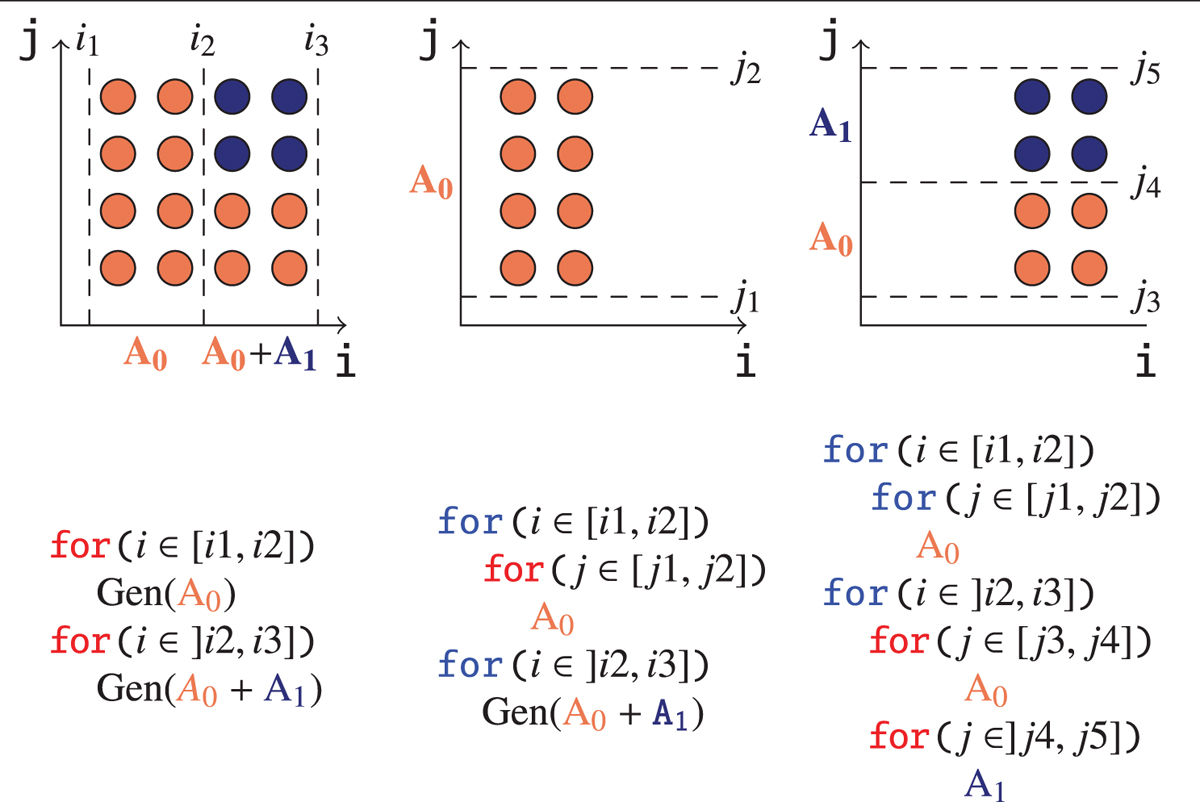

Fig. 11.

Download original image
From polyhedral to code. CLooG polyhedral code generation algorithm applied on the union of two alternative statement domains. The dimensions are processed one after the other recursively. The first dimension to be generated is the outermost loop (left). Then the second loop dimension is generated on the last two domains (center and right). The algorithm stops when there is no remaining domain to generate.
