Figure 2


Download original image

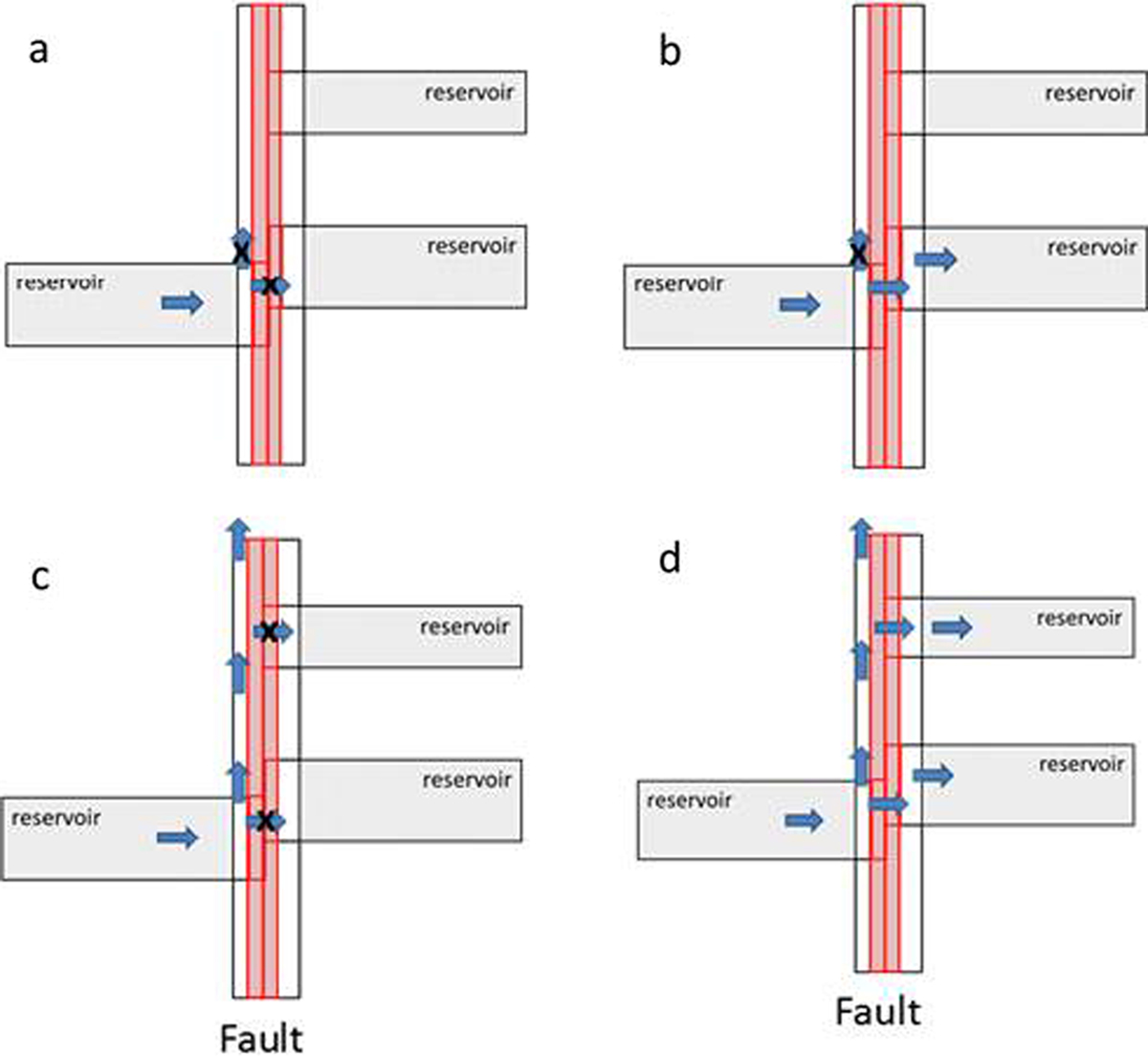

Examples of different fault fluid flows that can be simulated with ArcTem. Red cells = fault core cells, blue arrow = fluid flow. (a) Impervious fault, no longitudinal or across-fault fluid flow. (b) No longitudinal fault fluid flow but across-fault flow is allowed. (c) No across-fault fluid flow, but longitudinal flow is allowed. (d) Longitudinal and across-fault fluid flows are allowed.
