Fig. 1

Download original image

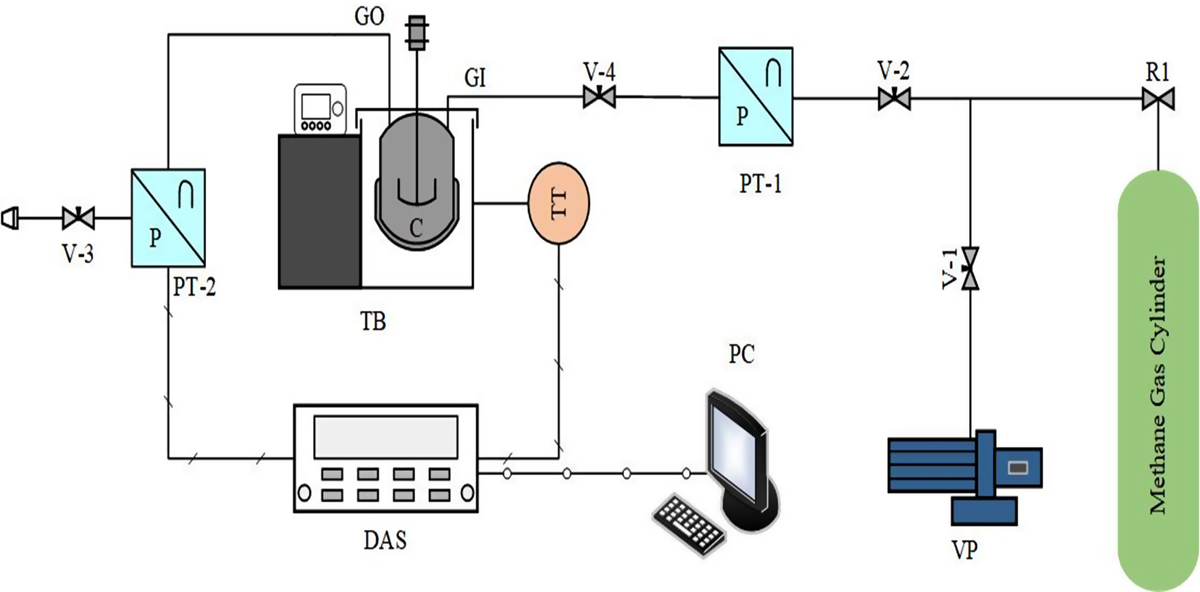

A schematic diagram of the setup. R, Regulator; V, Valve; P, Pressure; PT, Pressure Transducer; PC, Personal Computer; TT, Temperature Transmitter; TB, Thermostatic Bath; C, Cell; GI, Gas In; GO, Gas Out; DAS, Data Acquisition System; VP, Vacuum Pump.
