Fig. 10


Download original image

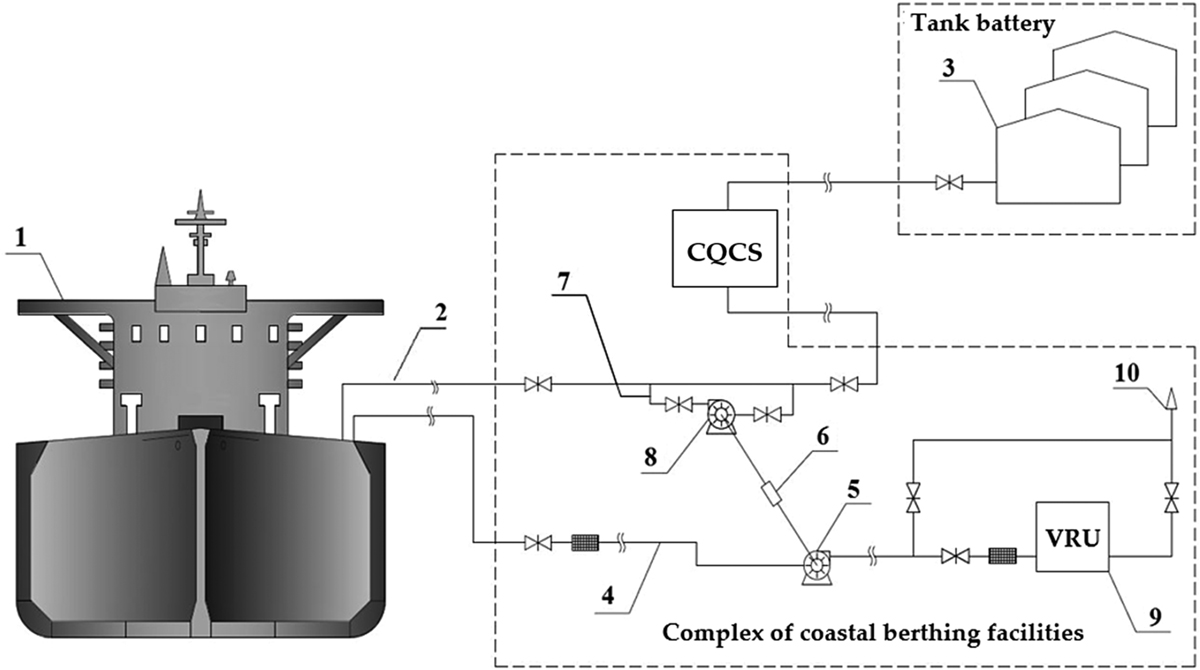

General view of the device for capturing oil and petroleum products vapors at terminals. 1 – tanker; 2 – oil filling pipeline; 3 – reservoirs; 4 – the piping of the gas phase; 5 – gas blower; 6– multiplier; 7 – bypass filling line; 8 – a centrifugal unit; 9 – vapor recovery unit; 10 – gas supply pipeline for purging.
