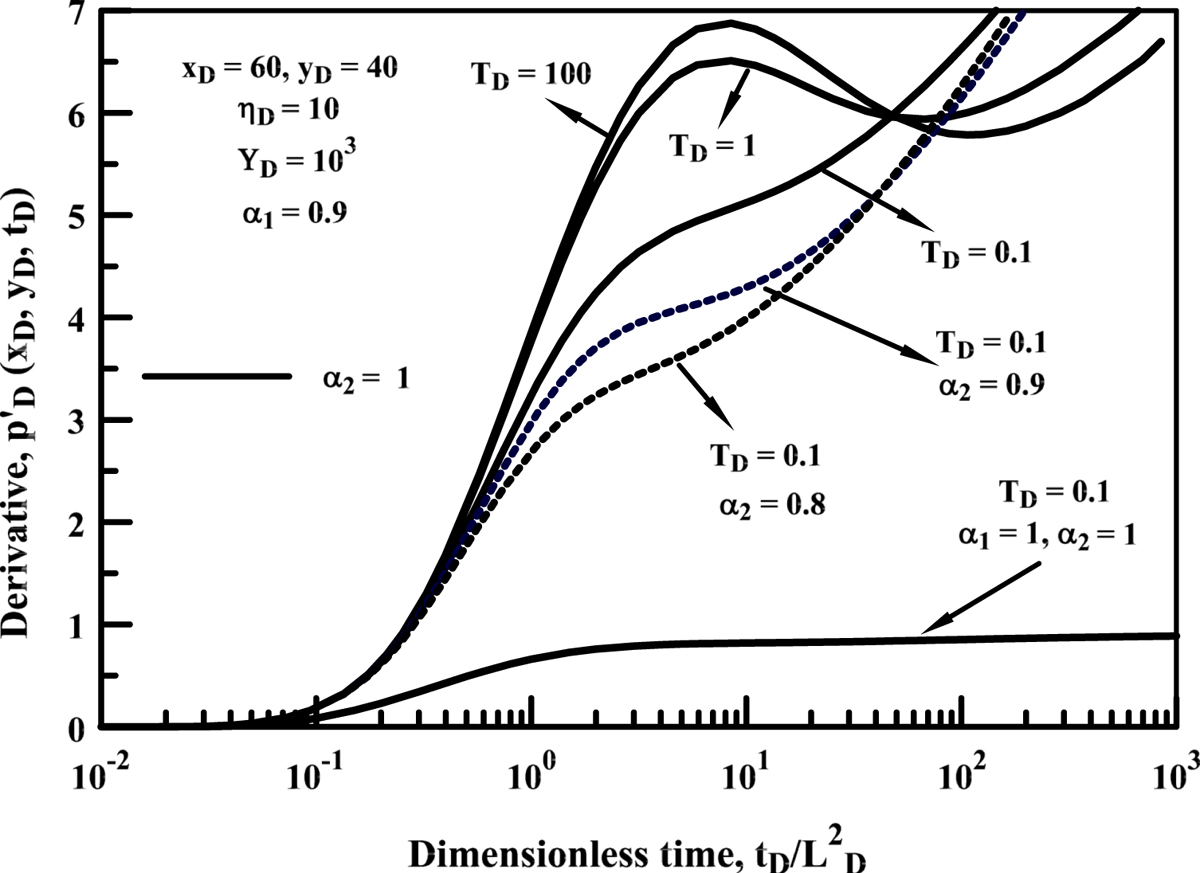

Fig. 4

Download original image
Influence of contact resistance on derivative responses at an observation well, . Again, both wells are on the same side of the fault, the change in
from 1.0 to 0.9 produces a significant change in the magnitude of the response.
