Fig. 6

Download original image

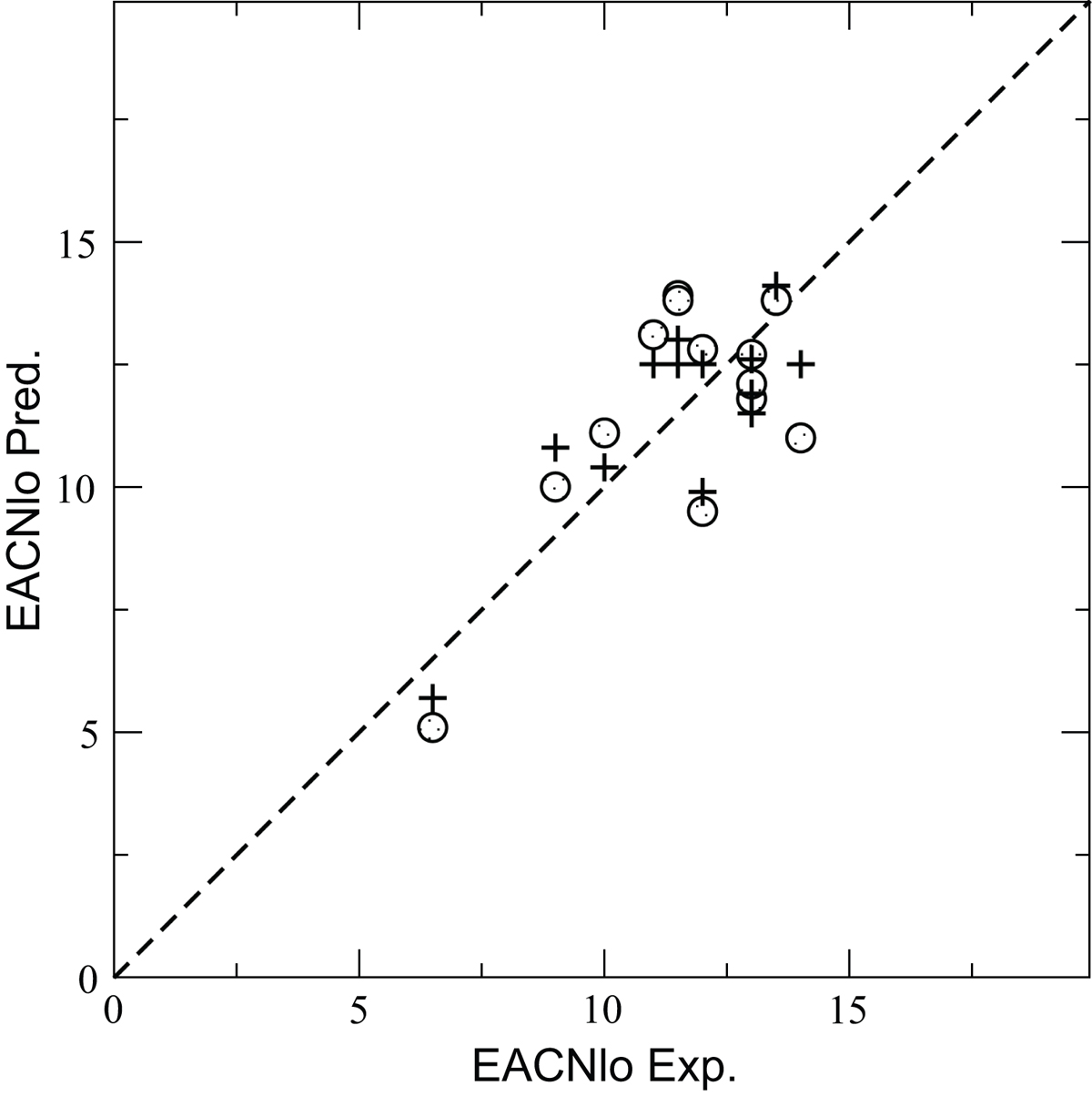

Scatterplots of experimental EACNlo values versus predicted EACNlo values. Circles stand for the full predictive approach (the model proposed by Creton and Mougin together with Eq. (5)) while plus symbols denote the use of the model proposed by Creton and Mougin together with experimental EACNdo.
