Fig. 5

Download original image

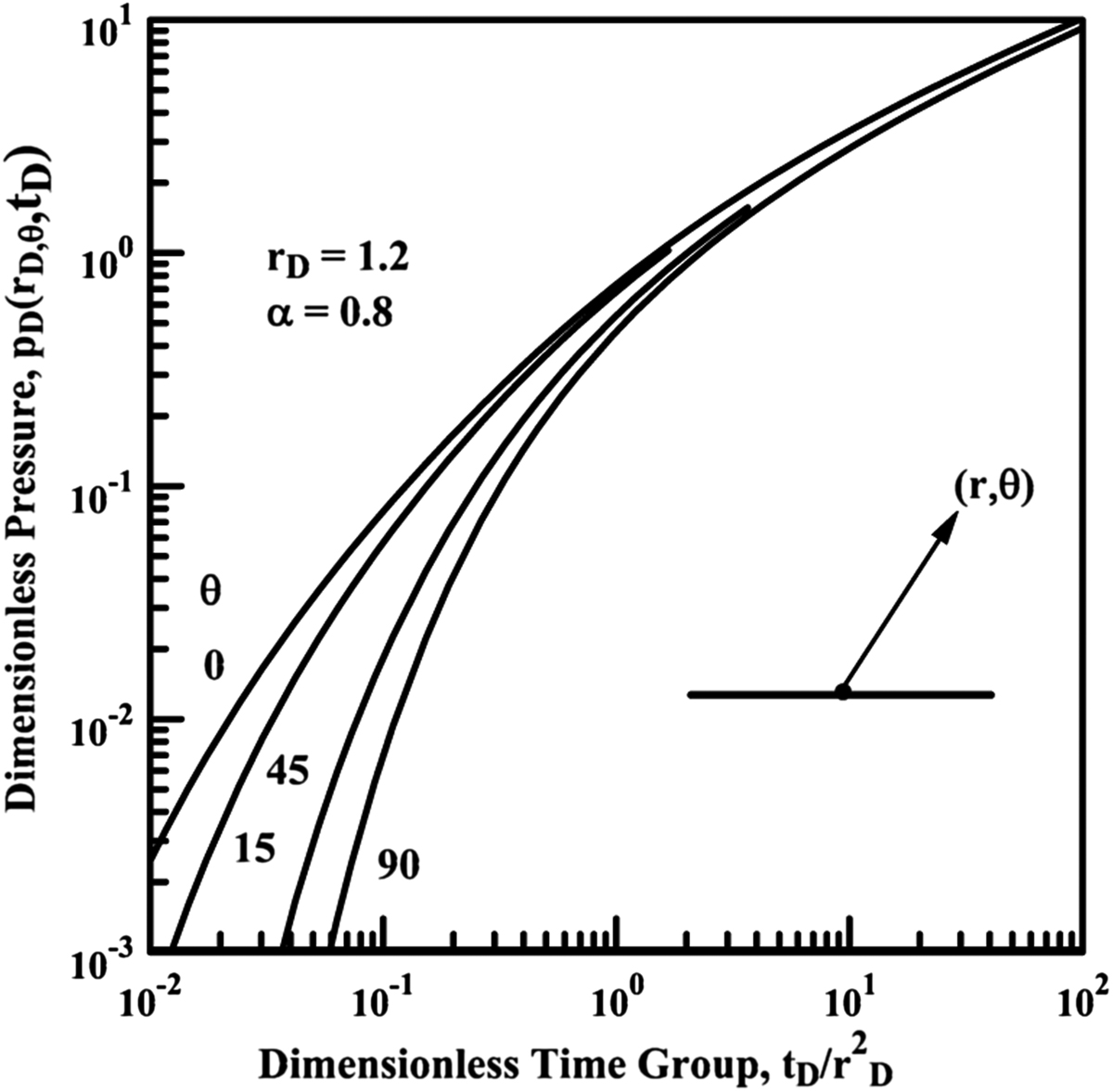

Pressure distribution under subdiffusive flow at rD = 1.2 for a well produced through a vertical fracture; the flux distribution along the fracture length is uniform. The subdiffusive coefficient, α, is 0.8. The compass orientation, θ, in a horizontal plane is the parameter of interest with θ = 0° being aligned with the fracture plane.
