Fig. 15

Download original image

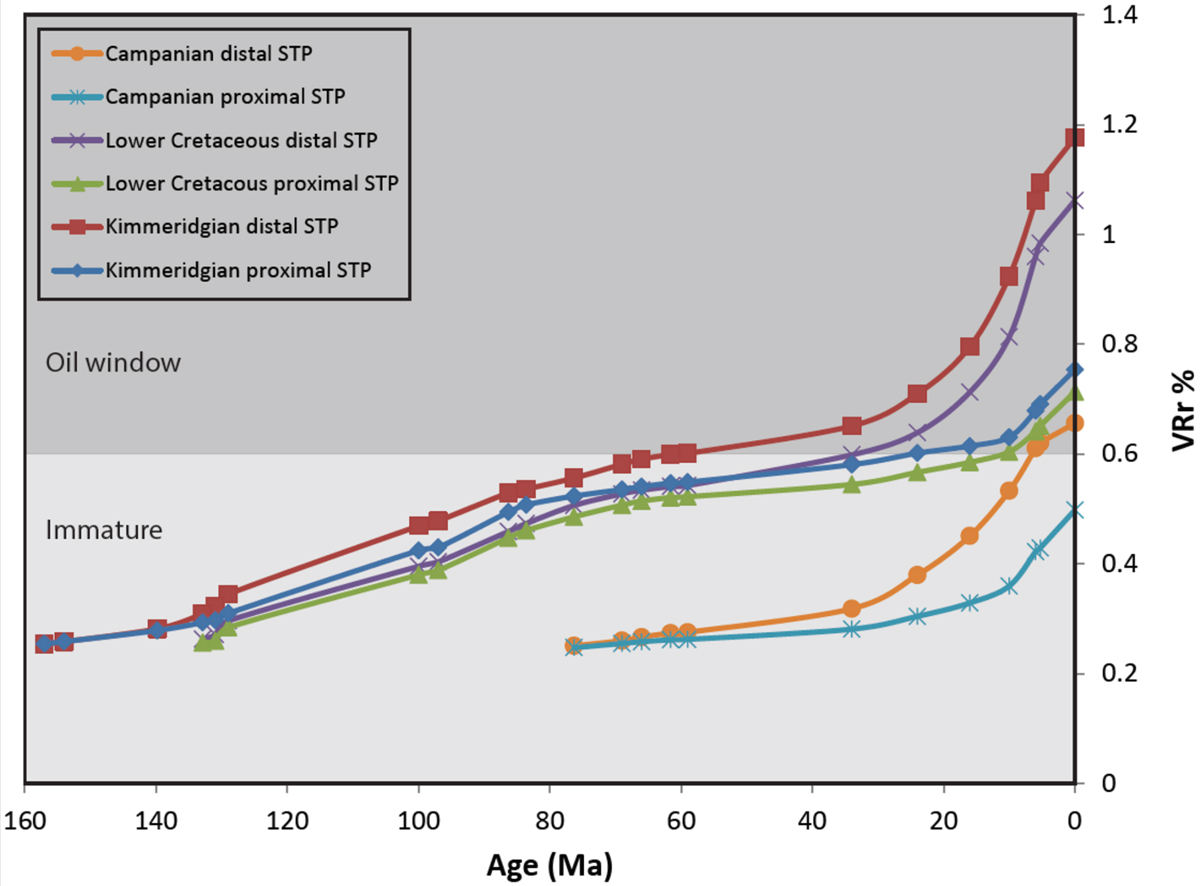

Extracted modeled vitrinite reflectance (VRr%) for key source rock intervals (Kimmeridgian, Lower Cretaceous, and Campanian) showing distinct maturation trends in proximal and distal STP (for location see Fig. 9).
Extracted modeled vitrinite reflectance (VRr%) for key source rock intervals (Kimmeridgian, Lower Cretaceous, and Campanian) showing distinct maturation trends in proximal and distal STP (for location see Fig. 9).
