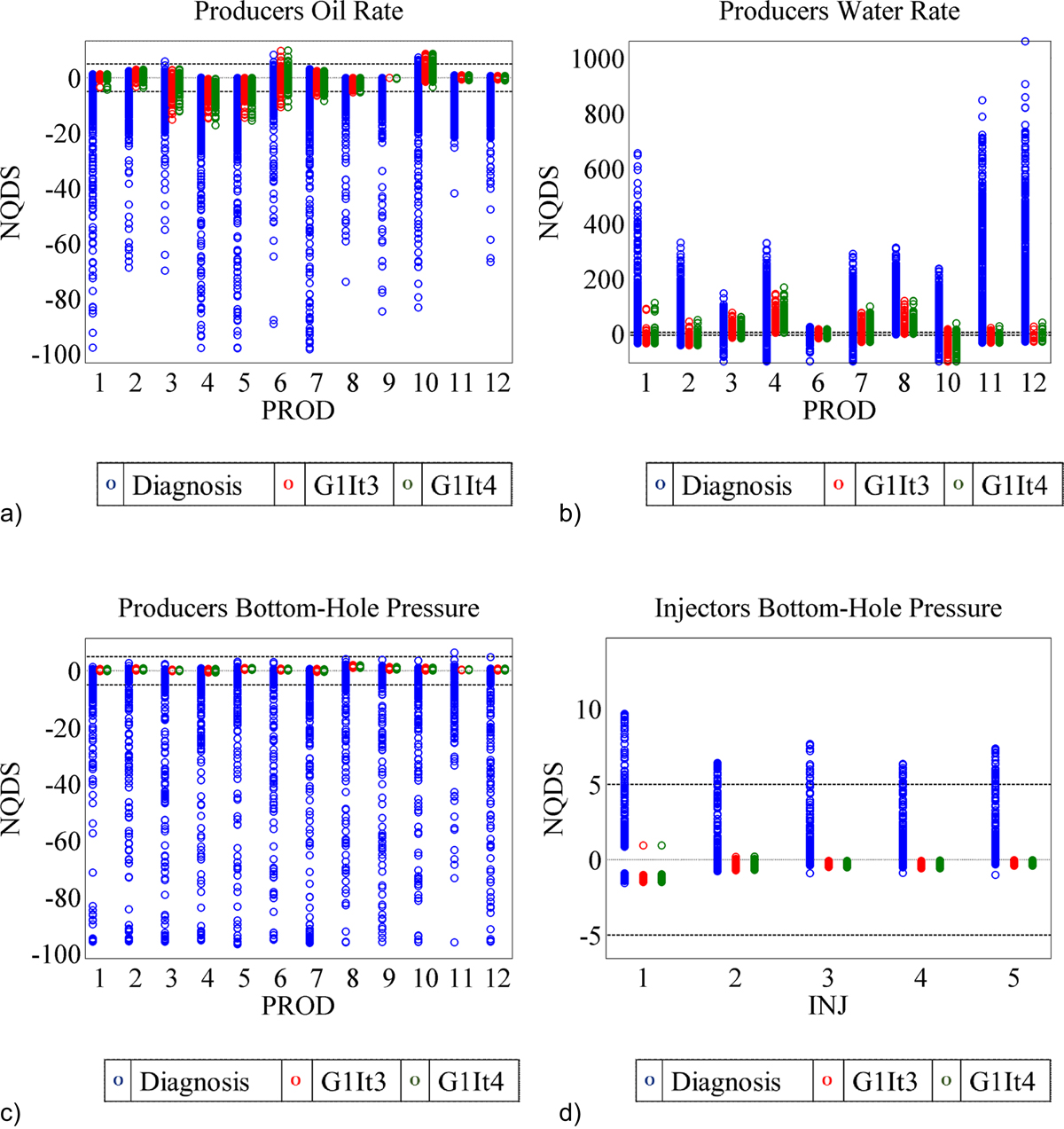

Fig. 17.

Download original image
NQDS of the last two iterations for Group 1 (G1It3 and G1It4), and the diagnosis for comparison; (a) for producers’ oil rate, (b) for producers’ water rate, (c) for producers’ bottom-hole pressure, and (d) for injectors bottom-hole pressure.
