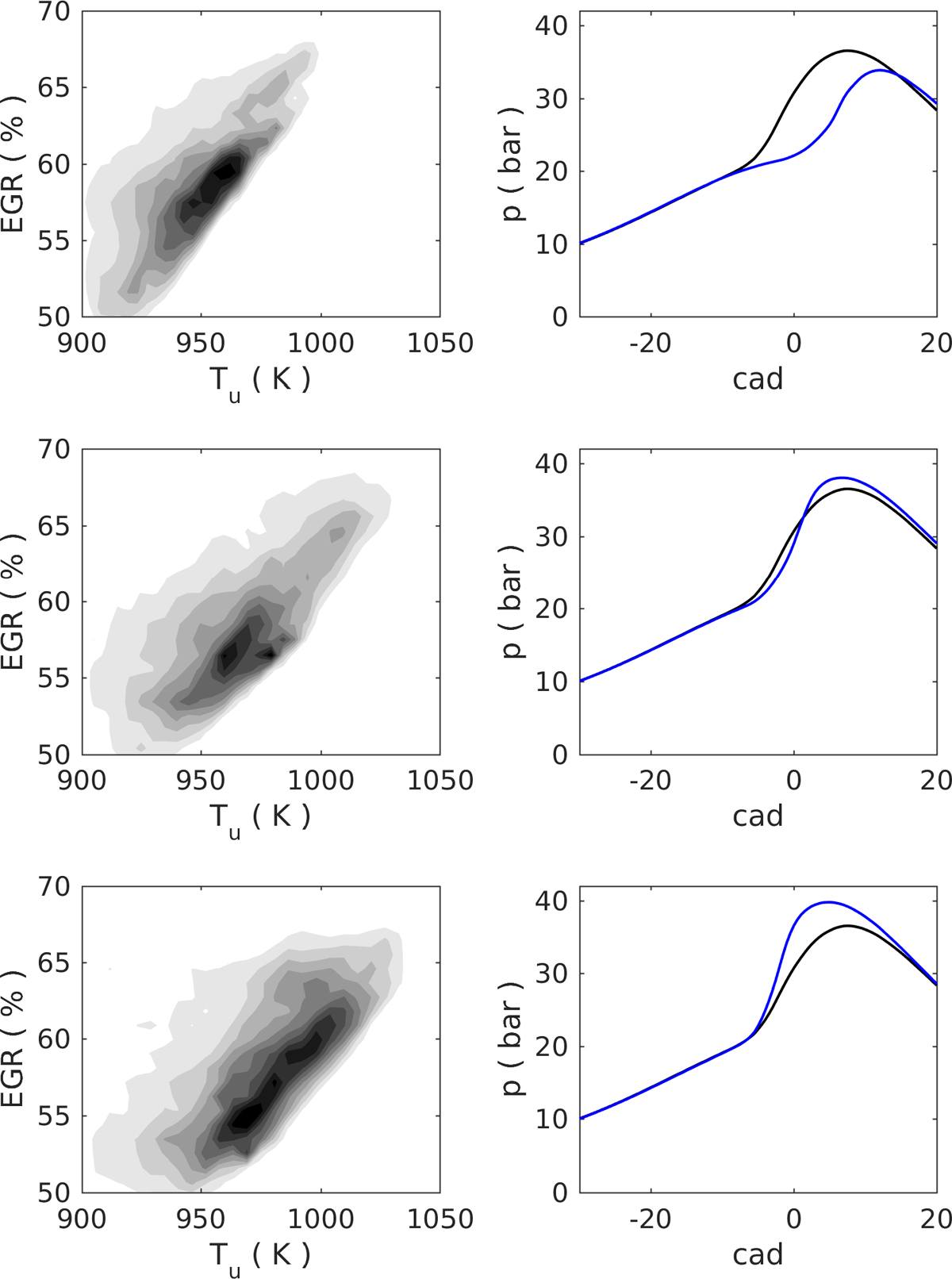

Figure 24
Download original image
Joint pdf of Tu and EGR for a weak (top), average (middle) and strong (bottom) cycle at −25 cad. On the right the corresponding pressure curve is given in blue in comparison to the averaged one in black.
