Figure 15
Download original image

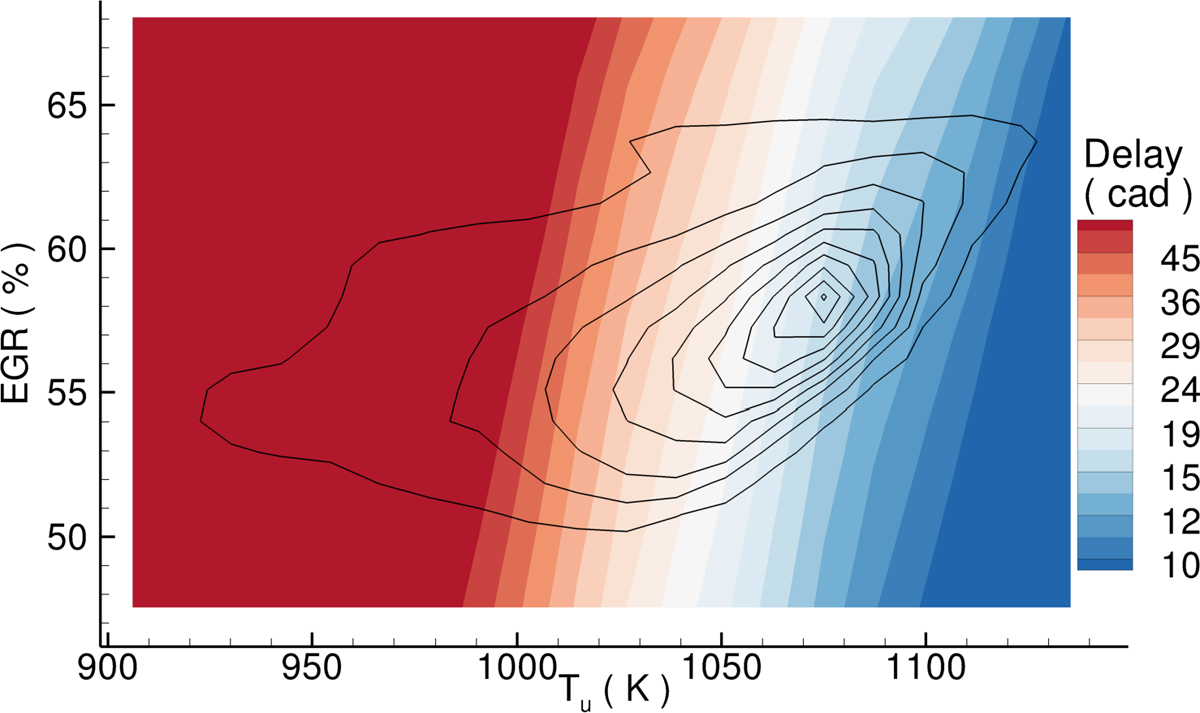

Joint pdf of Tu and EGR found within the engine at −10 cad (onset of ignition) superimposed onto the ignition delay of the corresponding thermo-chemical state. Wall regions are included in the pdf.
