Figure 2.


Download original image

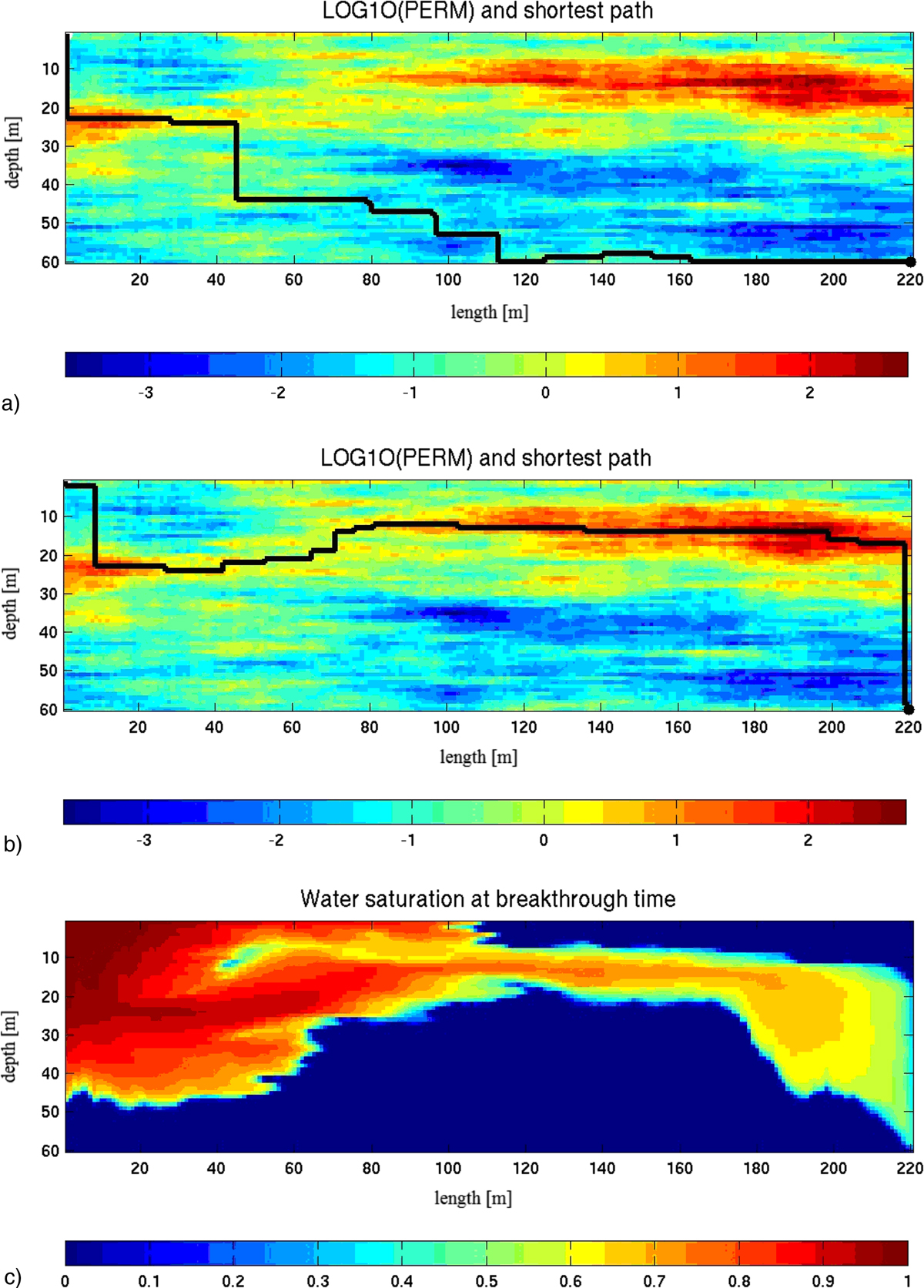

a) Permeability field and associated shortest path derived from connectivity analysis without accounting for pressure. b) Permeability field and associated shortest path derived from connectivity analysis with pressure accounted for. c) Water saturation at breakthrough time.
