Figure 5.

Download original image

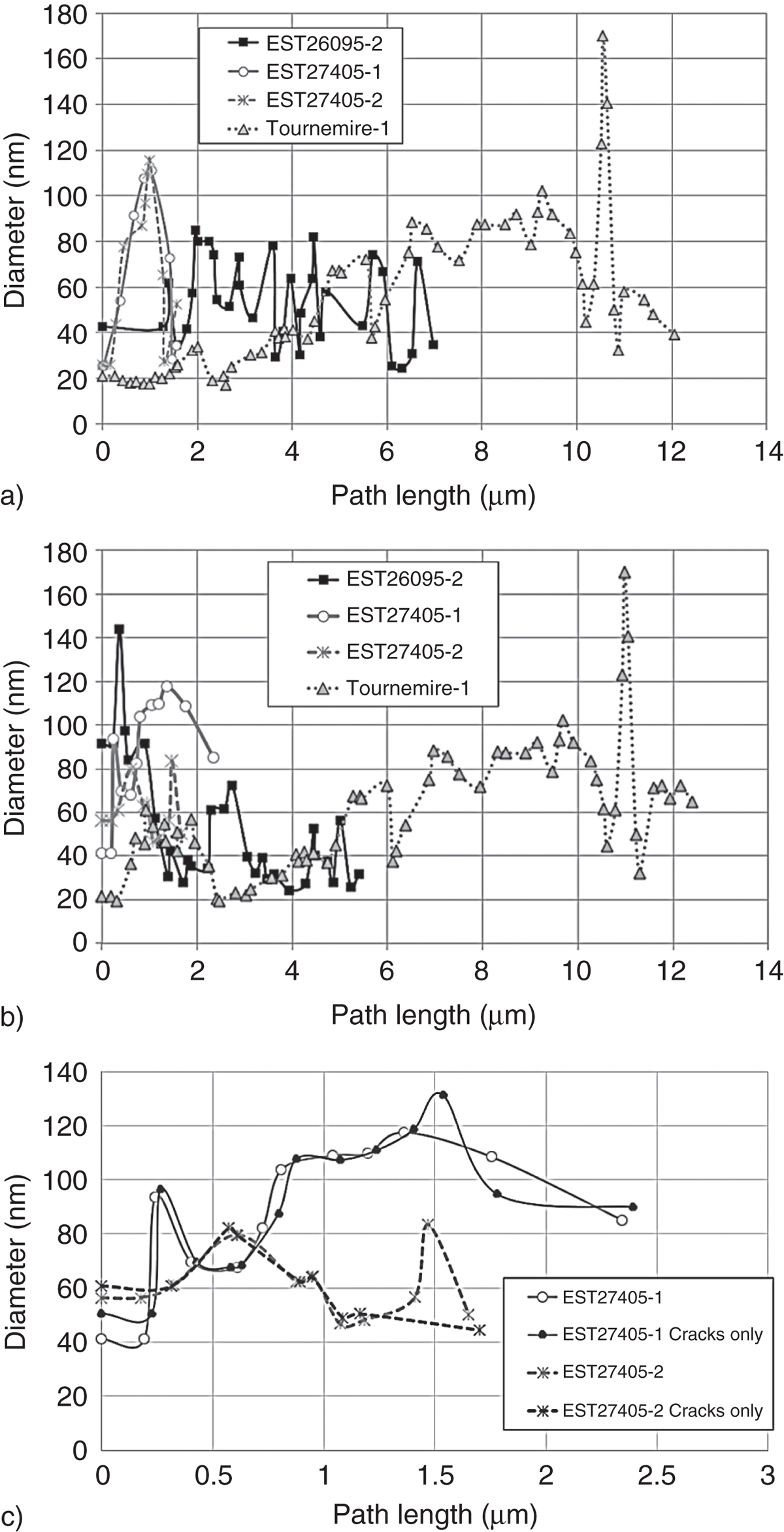

For all four connected claystone samples, distribution of pore diameters along a) the shortest path or b) the largest path; c): along the largest path, but limited to micro-cracked EST27405 samples, presented when taking the cracks into account (or not).
