Fig. 22
Download original image

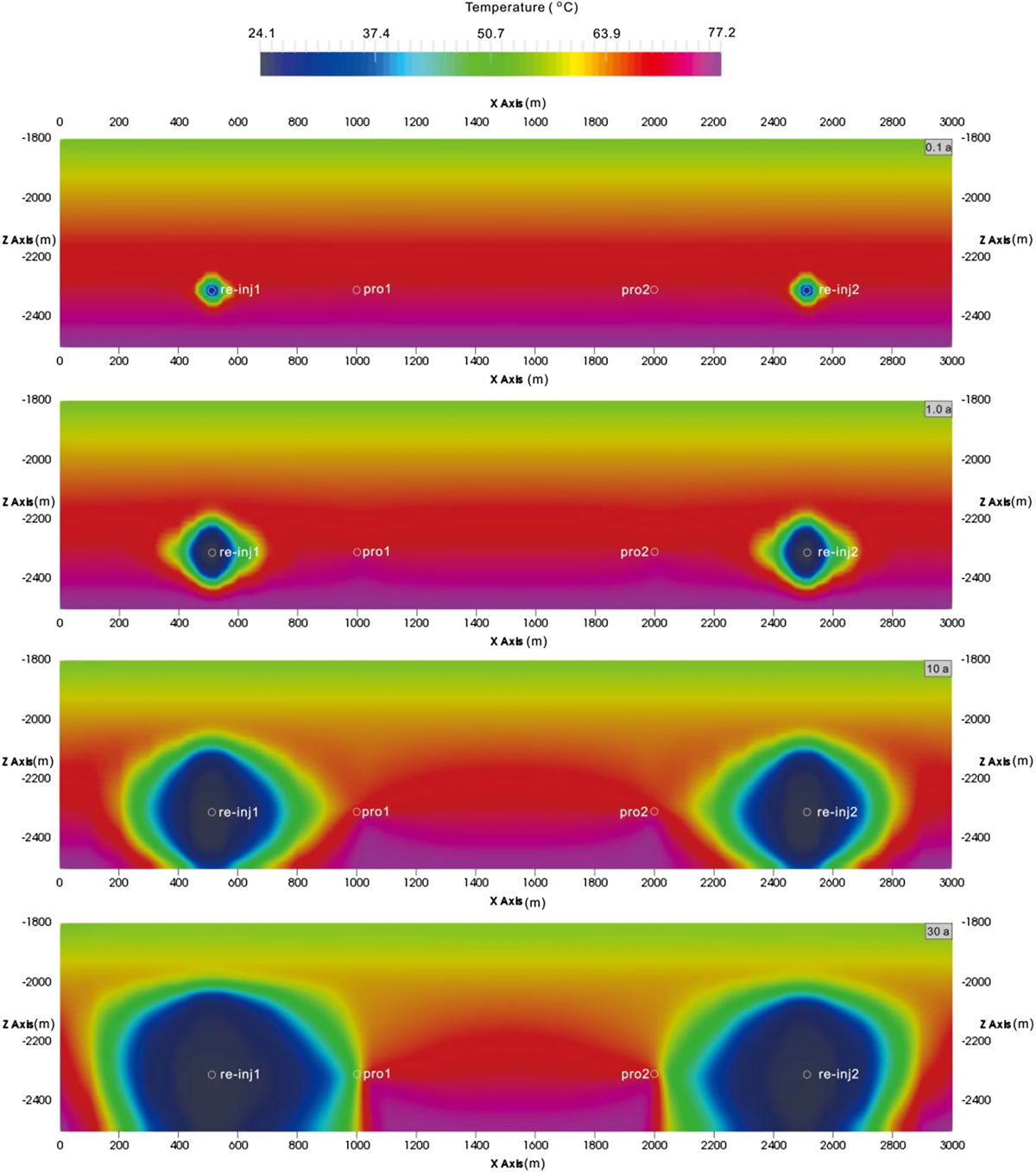

Spatial distribution of the reservoir temperature induced by hot water extraction (100 m3/h) and cooled geothermal water reinjection at different times, including 0.1 year, 1.0 year, 10 years, and 30 years (case 6).
