Fig. 3

Download original image

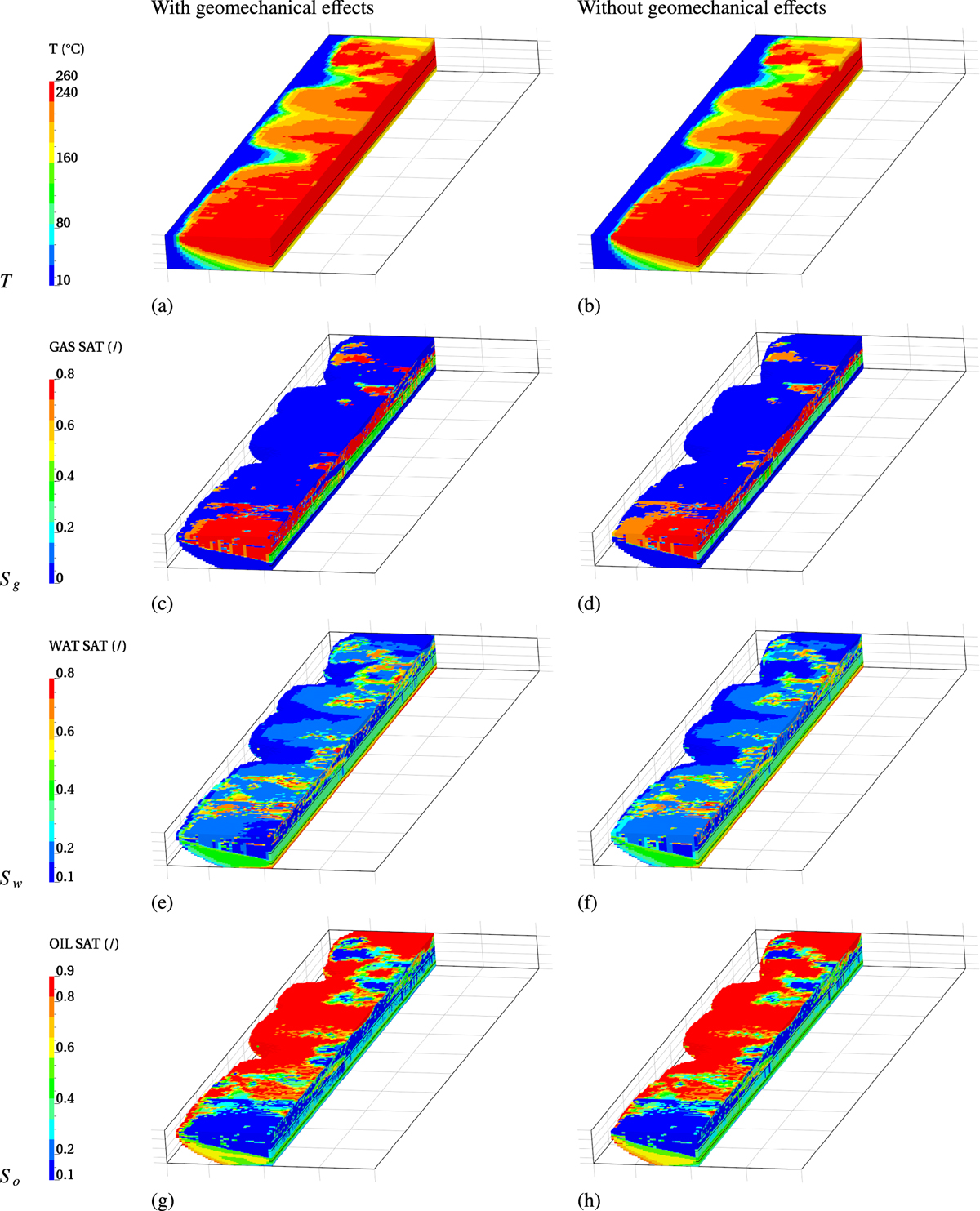

Field properties in a cut at Y = 75 m: T is a temperature, Sg is a gas saturation, Sw is a water saturation and So is an oil saturation; upper black line corresponds to the injector well and bottom one to the producer well. Data corresponds to a steam chamber with minimal temperature of 100 °C.
