Figure 16

Download original image

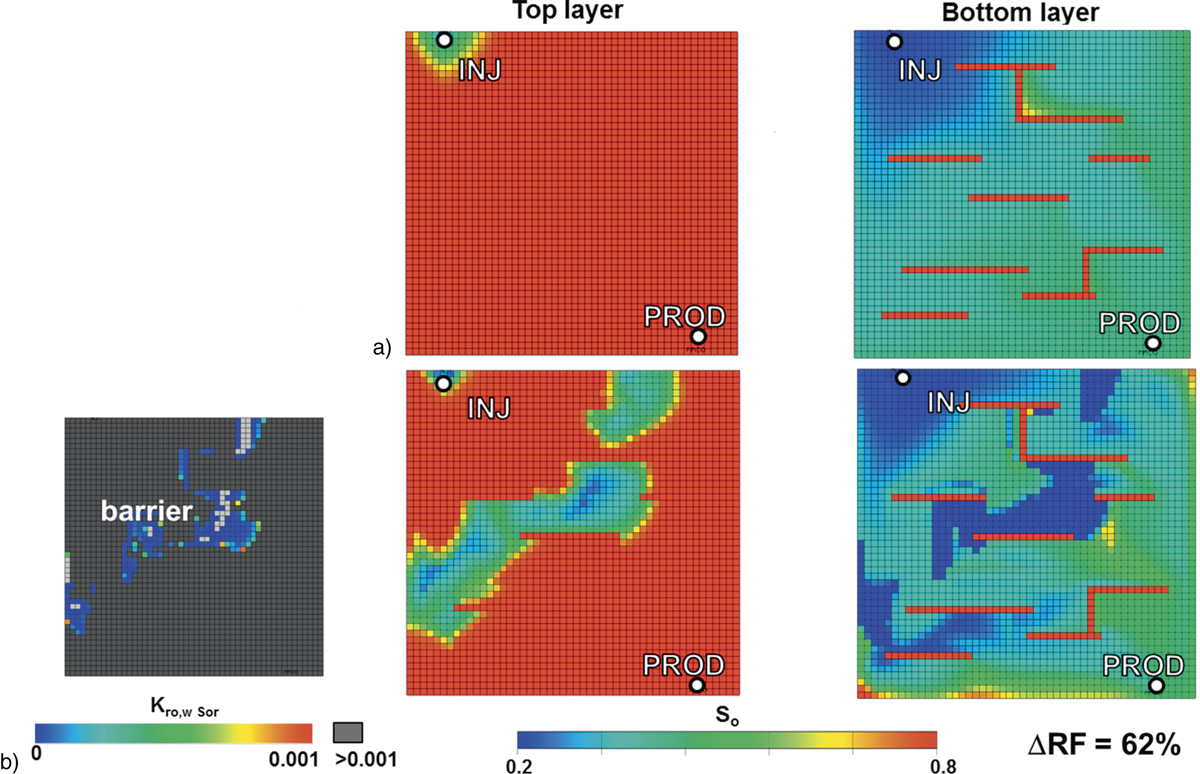

Scenario 6 – Cross-sections with oil saturation distribution after 5 years from the start of intervention: comparison between do nothing case a) and smart fluid injection case b); barrier placement (relative permeability end point at Sor).
