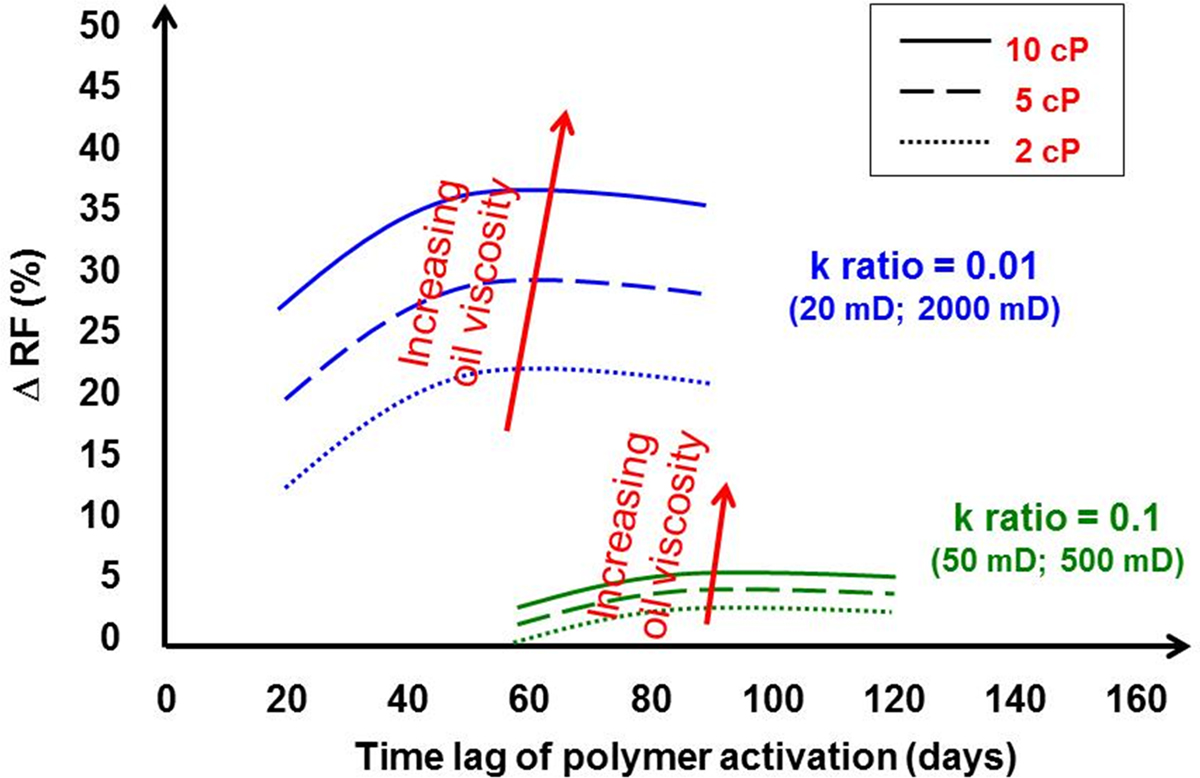

Oil recovery increment as a function of time lag of polymer activation for different oil viscosities and different permeability heterogeneity ratios for Scenario 1.
